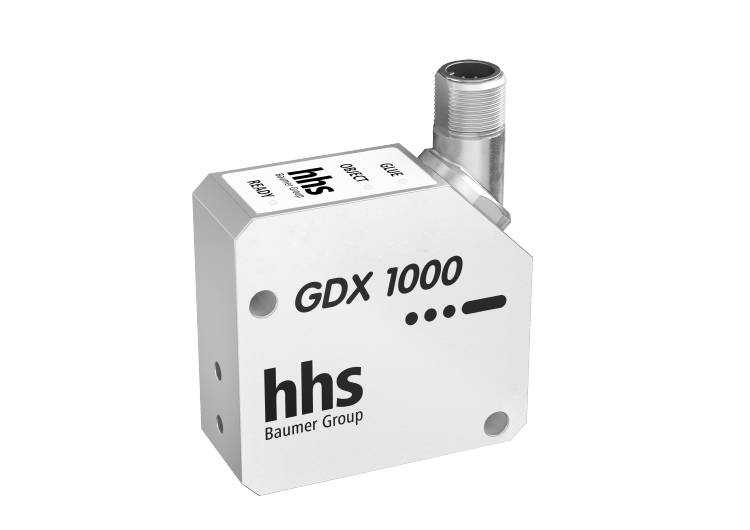

GDX 1000
With the completely newly developed GDX 1000 adhesive sensor, based on thousands of installations, Baumer hhs provides its customers with the right quality assurance tool for future requirements.
Get Offer
Overview

Cold glue detection in perfection.

With the completely newly developed GDX 1000 adhesive sensor, based on thousands of installations, Baumer hhs provides its customers with the right quality assurance tool for future requirements.

Take your production to the next level.

   - Reduced set-up times

   - Early detection of emerging defects

   - Reliable monitoring of adhesive-free areas

   - Easy set up

   - Set up and check the sensor on the control unit

   - Scanning frequency 20kHz

Technical Specifications

Technical Data

SpecificationValueUnit
Operating voltage24 +- 20%VDC
Power consumption, maximum150mA
Measurement principleInfrared measurement-
Scanning frequency

20

50

kHz

µs

Minimum monitorable dot size1 x 1mm
Spot size5 x 1,6mm

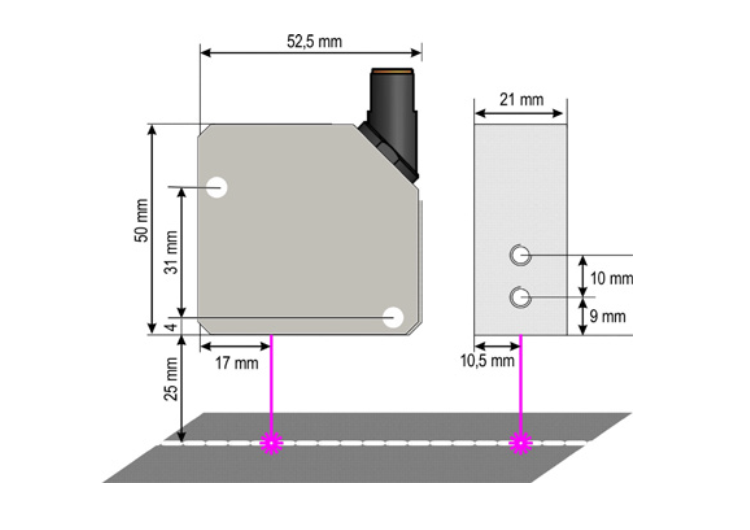

Measuring distance to product25 +- 5mm
