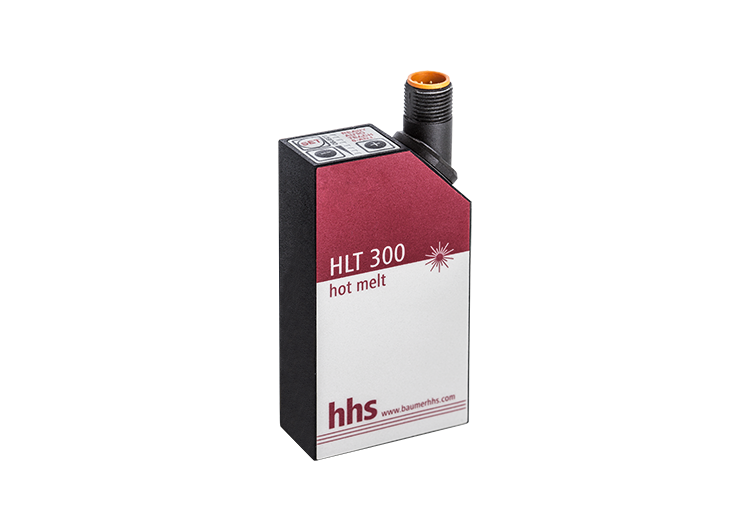

HLT-300 SPS
Hot melt detection for evaluation on a PLC
Get Offer
Overview

Hot melt detection for evaluation on a PLC

In packaging production, the use of hot-melt for closing folding boxes is standard. For this application, the HLT-300 was also developed in a version that can be evaluated directly at a PLC machine control.

This makes it possible to monitor the glue application in this application as well.

- Reliable hot melt detection

- For dot application and line application

- Evaluation in the sensor

Technical Specifications

Technical Data

SpecificationValueUnit
Operating voltage10 - 30V
Power consumption 12 V200mA
Power consumption 24 V100mA
Minimal dot size1x1mm
Spot size8 x 2mm
Measuring distance to product20 ± 5mm
Scanning frequency10kHz
Protection class64IP
Temperature range10 - 40°C
Relative humidity max.70

%

Available with impulse length: 0, 5, 10, 15 ms
