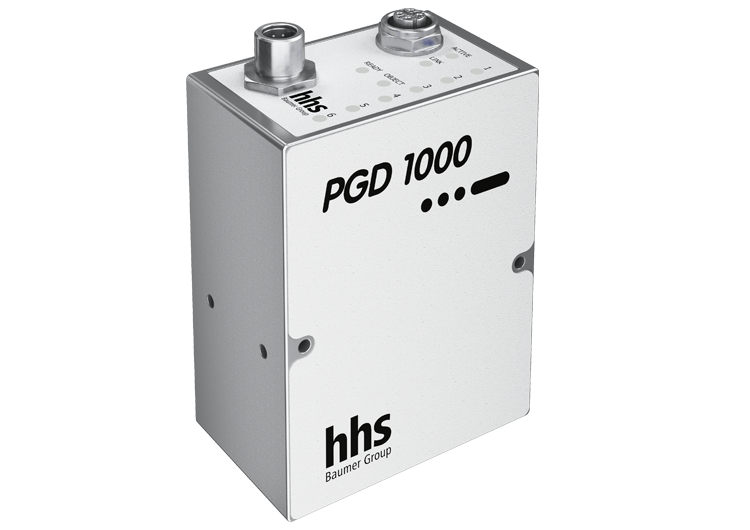

PGD 1000
The PGD 1000 is the new benchmark in glue detection for corrugated production.
Get Offer
Overview

A Sensor, but camera like

The PGD 1000 is the new benchmark in glue detection for corrugated production.
Designed for the upcoming challenges of the industry.

- 100% detection of cold glue

- No optical brighteners are needed in the adhesive

- Regardless of whether the substrate is printed or not

Technical Specifications

Technical Data

SpecificationValueUnit
Operating voltage24 ± 20 %VDC
Power consumption maximum150mA
Measuring principleInfrared measurement-
Scanning frequency10kHz
Minimum dot size1x1mm
Viewing widht~ 55mm
Measurement distance to product25 ± 5mm
Protection classIP 64
